Home › Forums › Vintage EHX › Old Swithblade: what’s the ALT Switch for?

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • June 2, 2022 at 4:34 pm #191170
    fmm
    Participant

    Hi! I have an old (probably 80’s) Switchblade (passive). There’s a slider switch with 2 positions: ALT and ON.

    What does it do?

    June 2, 2022 at 6:33 pm #191177
    The EH Man
    Moderator

    If I remember correctly, ALT switches between the two outputs and ON leaves one output on all the time and turns the other output on/off

    June 2, 2022 at 6:33 pm #191178
    The EH Man
    Moderator

    If I remember correctly, ALT switches between the two outputs and ON leaves one output on all the time and turns the other output on/off

    June 4, 2022 at 2:56 pm #191197
    j_flanders
    Participant

    I have one of these.

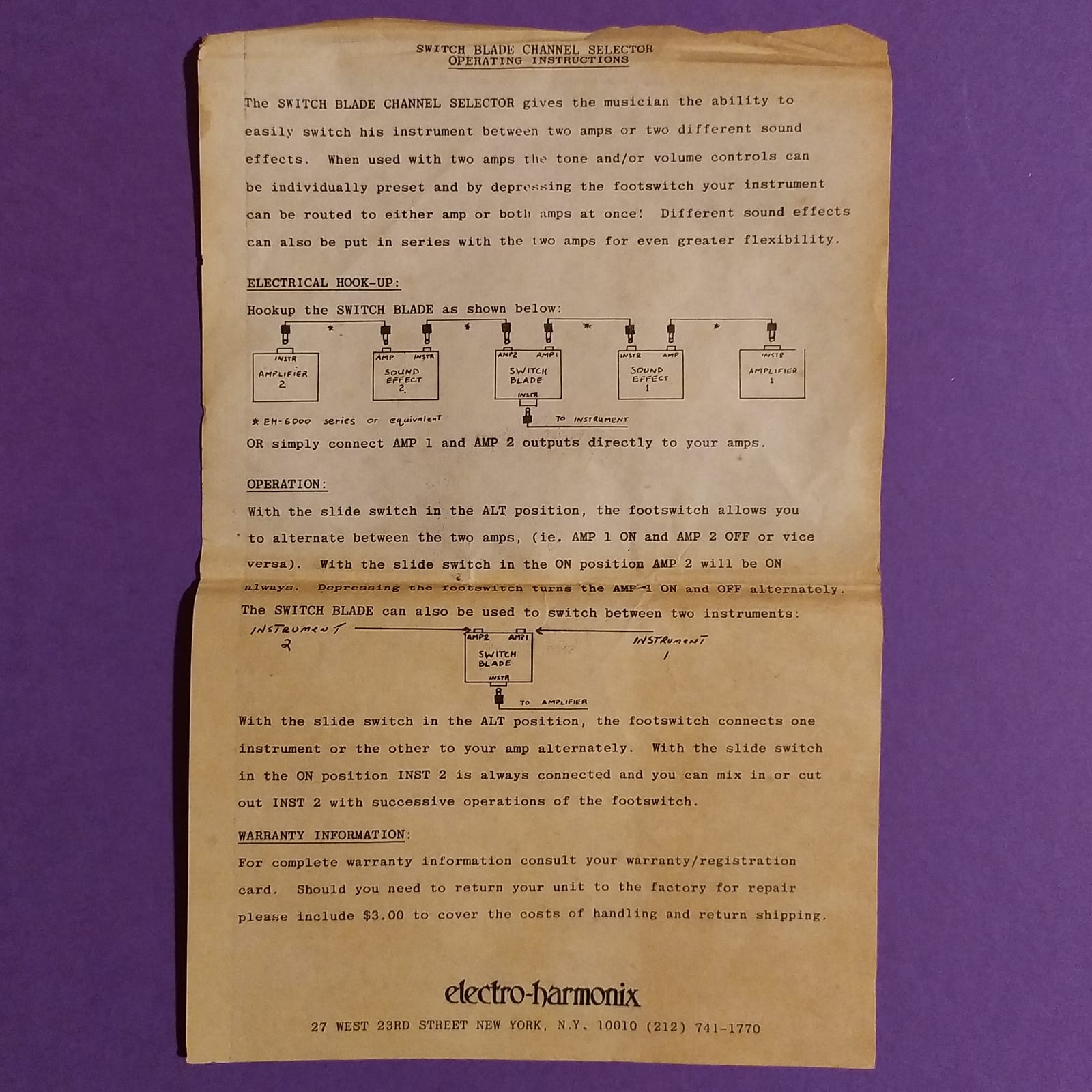

    Here’s a copy of the original manual:
    https://i.postimg.cc/xQPFTCrQ/vintage-sw-itchblade-instructions.jpg

  • Author
    Posts
Viewing 4 posts - 1 through 4 (of 4 total)
  • You must be logged in to reply to this topic.
