And yet people refuse to believe it, they still think B.Corgan used one of these CD BMP’s. 🙄

I checked yours, Ned, and I am by-passing only the pot. I didn’t mess with the caps at all.

The link is to a google web doc, I don’t know why it won’t work for you. Is it just giving you a blank screen or what? You have to maximize the screen that pops up in order to advance the slides. Do you have your pop up blocker on?

Anyway, I like the way you did it.

Dave

All i get is the title page then its done, nothing else.

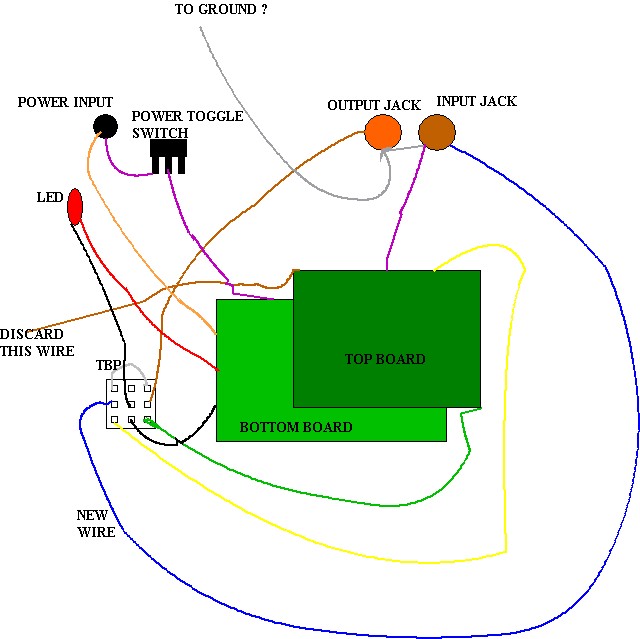

Here’s a mod for the old style Bass Micro Synth for true bypass. I assume it works just fine for the guitar synth as well.

This is a drawing another forum user at Talkbass made, and my pedal tech used it accordingly, however there’s a mistake we discovered.

Now, where it says “discard” on that brown wire, DON’T DO THAT! Instead, make that wire connect on the switch where the green wire is connected in the diagram. Then, discard the green wire.

This is just what he’s told me, I can get more detailed instructions if necessary. Basically just rewire the switch for how it is there, with those 2 wires switched up.

I TB’d my micro synth, I shoulda done a nice diagram for people before I sold it. All you do is bypass the preamp that the bypassed signal goes through, pretty simple and to find out which wire to discard you just need a multi meter. I might redraw this diagram for people BTW.

any english muff’n mods??
