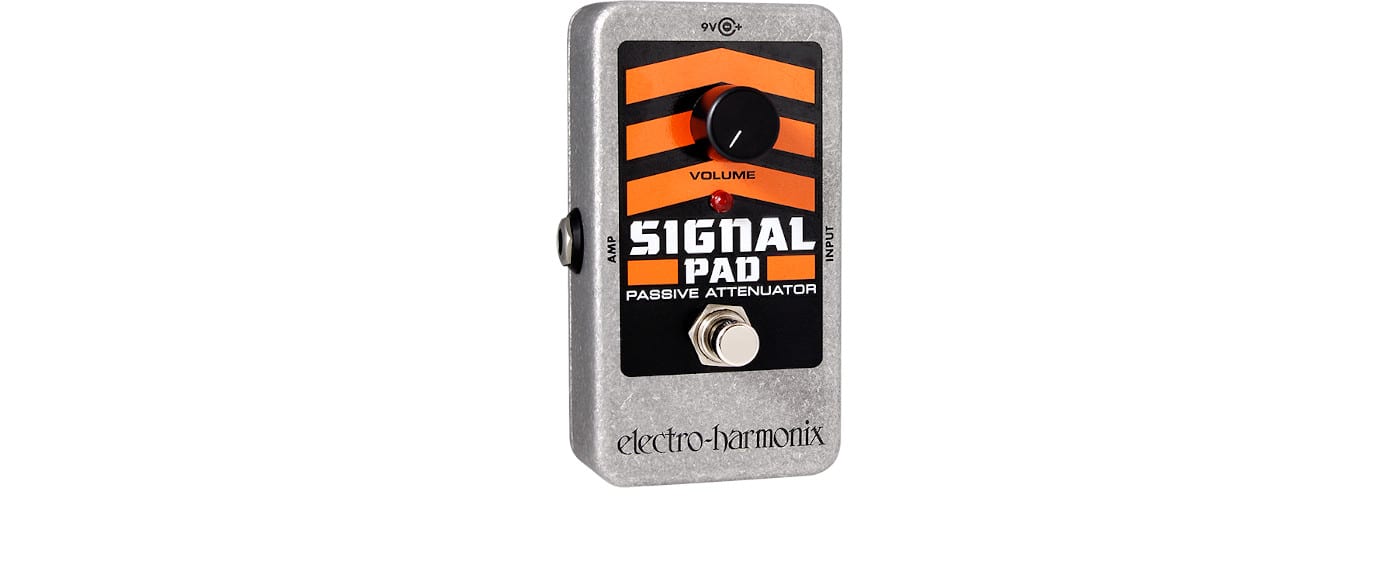

Signal Pad

DESCRIPTION

The EHX Signal Pad is a passive attenuator that allows you to instantly switch to a different preset volume. It’s like your guitar’s volume knob, with a fully-passive and color-free circuit. Leave your amp’s volume set high for overdrive, and use the Signal Pad to lower your level for a clean sound — then switch it off to kick in your amp’s natural overdrive. You can also experiment with the Signal Pad anywhere in your effects chain — you’ll bring out new tonal combinations from your favorite old pedals.

  • Turn any single channel amp into a two channel setup
  • Switch from lead to rhythm on the fly
  • Use in front or after any effects to change the tone of that effect
  • True bypass
  • 9V battery included

SPECIFICATIONS

Circuit
Analog
Bypass
True Bypass
Audio
Mono
Power Supply
Optional 9V battery or 9.6VDC-200mA power adapter not included
Dimensions (in)
4.5 x 2.75 x 2.1
Current Draw
3mA
Year Released
2008
UPC
683274010915
Owner's Manual
VOLUME KNOB
Controls the output volume of the Signal Pad.
STATUS LED AND FOOTSWITCH
When the status LED is lit, the Signal Pad is in effect mode. When the LED is off, the Signal Pad is in true bypass mode. Use the footswitch to toggle between the two modes.
INPUT JACK
This ¼” jack is the audio input to the Signal Pad.
OUTPUT JACK
This ¼” jack is the audio output from the Signal Pad.

“For the price, this is definitely something to put in your toolbox!”

–Audiofanzine
