Ravish

Sitar Emulator
Transform your electric guitar into a sitar!

$277.40

Find a Dealer
Sound Clips
Sympathetic
Dry Blended In
Frozen Drone
Menu
  • Ravish | Sitar Emulator
  • $277.40
  • Find a Dealer

Ravish

DESCRIPTION

Very few instruments offer as much harmonic and dynamic flexibility as a sitar. Electro-Harmonix has streamlined the essence of the sitar into a compact enclosure that offers a polyphonic lead voice and tunable sympathetic string drones that dynamically react to your playing. With the EHX Ravish Sitar Emulator, you can create your own custom scales for the sympathetic strings while you set the decay time for the lead voice.

Two expression pedal inputs allow you to bend the pitch of the lead voice and control the volume of the sympathetic strings simultaneously. These unique controls offer the player the ability to program the Ravish to become a totally unique and organic instrument unto itself.

The Ravish is a truly new design with the flexibility to be a crossover tonal wonder.

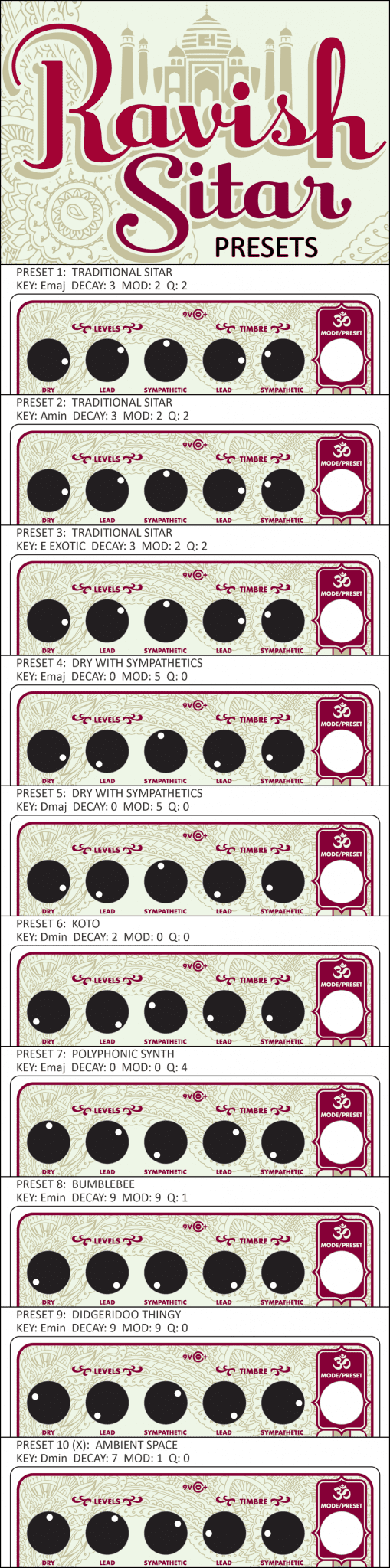

Download free Ravish settings

  • Transform your electric guitar into a sitar
  • Lead sitar voice tracks your notes polyphonically with a wide range of tonal possibilities
  • Selectable decay speed for the Lead voice
  • Sympathetic string drone simulation with a wide tonal range
  • Selectable keys and scales including major, minor and exotic provided for the Sympathetic strings
  • Power adapter included

SPECIFICATIONS

Circuit
Digital
Bypass
Buffered Bypass
Audio
Mono
Power Supply
9.6VDC-200mA power adapter included
Dimensions (in)
5.75 x 4.75 x 2.5
Current Draw
160mA
Year Released
2011
UPC
683274011189
Owner's Manual
DRY LEVEL
Controls the volume of the dry signal (your original instrument’s signal) present at the MAIN OUTPUT.
LEAD LEVEL
Controls the amount of lead sitar signal present at the MAIN OUTPUT.
SYMPATHETIC LEVEL
Controls the amount of sympathetic signal on the MAIN OUTPUT and the SYMPATHETIC OUTPUT.
LEAD TIMBRE
Controls the “buzz” or “zing” of the lead tone.
BodySYMPATHETIC TIMBRE
Controls the “buzz” or “zing” of the sympathetic strings tone.
MODE/PRESET Encoder
This white knob has three functions: 1. When in preset mode turn this knob to scroll through the presets, though it will not load the preset. 2. Press and hold for 3 seconds to save a preset. 3. Press and release to toggle through the PRESET, KEY, DECAY, MODULATION, PITCH BEND and Q modes.
PRESET FOOTSWITCH AND LED
The PRESET footswitch serves three purposes: 1. Press and release the PRESET footswitch to load a selected preset. 2. When in KEY MODE, press and hold the footswitch to engage the custom tuning feature of the Ravish. 3. When in any mode other than KEY MODE, press and hold the footswitch to freeze the sympathetic strings.
BYPASS FOOTSWITCH AND LED
Toggle between effect mode and bypass mode.
INPUT
Connect the output of your instrument or another effects pedal to this jack.
DRONE EXP
An optional expression pedal can be plugged into this jack for manual control of the Ravish’s sympathetic strings.
PITCH EXP
An optional expression pedal can be plugged into this jack and used to bend the pitch of the lead sitar up.
MAIN OUT
This jack contains the dry, lead sitar and sympathetic string signals.
SYMPATHETIC OUT
This output contains only the sympathetic strings signal and is intended for use with external effects and/or to go to a separate amplifier.

“Guitar-sound twisters and exotically minded sonic explorers everywhere have cause to celebrate.”

–Premier Guitar
